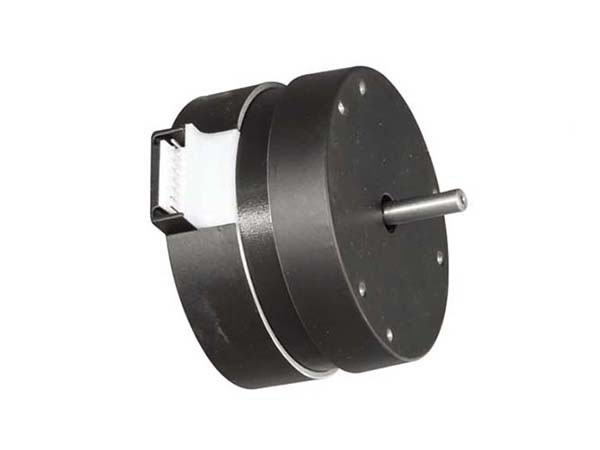

Motor Features
1. Compact electric motor design with a connector for quick installation.
2. Quality windings and rare earth magnets.
3. The Brushless DC motor has additional options including an extended shaft layout, connector and terminals and outleads.
4. Our dedicated manufacturing staff has the workmanship abilities and full-range of inspection equipment to guarantee brushless motor quality.
5. These motors are typically applied to testing and inspection instruments, medical equipment and some high-precision portable devices.
Applications
1. Office automation
2. Testing& inspection instruments
3. Medical equipment
4. Hi-precision portable devices

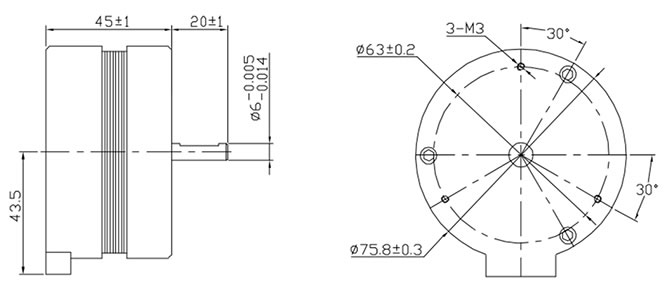

| Winding type | Star |
| Hall effect angle | 120 degrees electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.025mm＠460g |
| End play | 0.025mm＠4000g |
| Max. radial force | 75N＠20mm from the flange |
| Max. axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 700VAC 1 minute |
| Insulation resistance | 100MΩMin.,500VDC |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Torque (MAX) |
Torque Constant |
Rotor Inertia |
Weight | Length |
| Units | V | A | RPM | Nm | A | RPM | Nm | Nm/A | Kgmm2 | Kg | mm |
| 72SW01 | 30 | 0.45 | 7000 | 0.06 | 2.3 | 4900 | 0.18 | 0.1 | 6 | 0.35 | 40 |
| 72SW02 | 30 | 0.5 | 7000 | 0.07 | 2.3 | 4900 | 0.21 | 0.1 | 9.5 | 0.4 | 45 |
| 72SW03 | 30 | 0.55 | 7000 | 0.08 | 2.3 | 4900 | 0.24 | 0.1 | 13.8 | 0.5 | 55 |
