Motor Features
1. This electric motor has minimal need for maintenance with reliable performance.
2. Efficient power consumption with excellent heat dissipation.
3. The variable height of the stator laminations helps the brushless DC motor reach different rated torques evaluated by the design engineers.
4. Low noise and low motor vibration.
5. A wide range of output torque while the torque/speed curve is highly praised by our customers.
6. This series of brushless motors is widely applied to fitness equipment, CNC machines, textile machinery and carpenter machinery.
7. Optional IP65-level construction allows use in harsh environments
Applications
1. Positioning and automation system
2. Fitness equipment
3. CNC machines
4. Textile machinery
5. Carpenter machinery

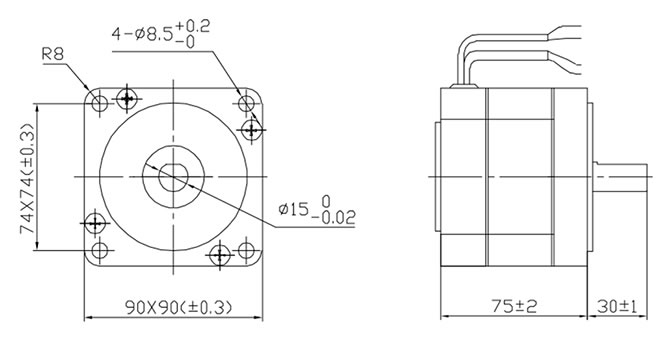

| Winding type | Star |
| Hall effect angle | 120 degrees electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.025mm＠460g |
| End play | 0.025mm＠4000g |
| Max. radial force | 75N＠20mm from the flange |
| Max. axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 1500VAC 1 minute |
| Insulation resistance | 100MΩMin.,500VDC |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Torque (MAX) |
Torque Constant |
Rotor Inertia |
Weight | Length |
| Units | VAC | A | RPM | Nm | A | RPM | Nm | Nm/A | Kgcm2 | Kg | mm |
| 90SW01 | 220 | 0.4 | 4200 | 1 | 2.8 | 3000 | 5 | 0.85 | 155 | 1.8 | 75 |
| 90SW02 | 220 | 0.6 | 4200 | 2.0 | 5.5 | 3000 | 10.0 | 0.85 | 265 | 3.0 | 108 |
| 90SW03 | 220 | 1.0 | 4200 | 3.0 | 8.5 | 3000 | 13.0 | 0.85 | 355 | 4.0 | 128 |
