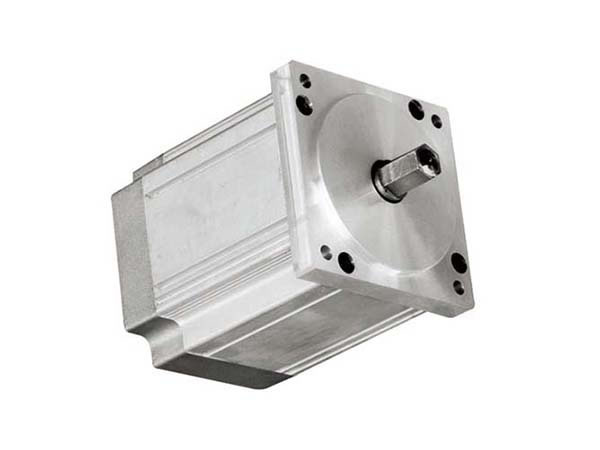

Motor Features
1. The Brushless DC motor's windings are optimized in a 3-phase and 4-pole configuration.
2. An aluminum alloy extruded housing makes it possible to reduce the weight and increase heat dissipation in the electric motor.
3. Closed-type construction with aluminum die-cast end bells and quality insulation materials, contribute to the brushless motor's high performance operation in humid environments.
4. The peak torque can reach 6.6N.m to without producing excess vibrations or overloading.
5. The optional nominal voltage can reach 310VDC, for lower energy consumption with high output power.
6. This DC motor is widely applied to the pump and valve industry, cutting and welding equipment and solar facilities.
Applications
1. Flat knitting machines
2. Packaging machinery
3. Cutting& welding machines
4. Solar tracking system

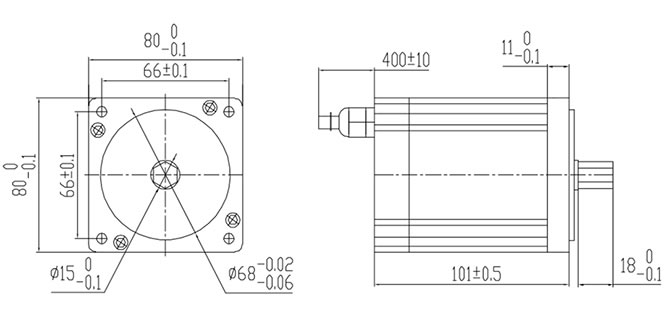

| Winding type | Star |
| Hall effect angle | 120 degrees electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.025mm＠460g |
| End play | 0.025mm＠4000g |
| Max. radial force | 75N＠20mm from the flange |
| Max. axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 1000VAC 1 minute |
| Insulation resistance | 100MΩMin.,500VDC |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Torque (MAX) |
Torque Constant |
Rotor Inertia |
Weight | Length |
| Units | V | A | RPM | Nm | A | RPM | Nm | Nm/A | Kgcm2 | Kg | mm |
| 80SW01 | 48 | 0.5 | 3300 | 0.5 | 4.1 | 3000 | 1.5 | 0.12 | 0.86 | 1.35 | 101 |
| 80SW02 | 48 | 1 | 3500 | 1 | 8.5 | 3000 | 3.0 | 0.12 | 1.12 | 2 | 131 |
| 80SW03 | 310 | 0.1 | 3300 | 0.5 | 4.1 | 3000 | 1.5 | 0.4 | 0.86 | 1.35 | 101 |
| 80SW04 | 310 | 0.2 | 3500 | 1 | 8.5 | 3000 | 3.0 | 0.4 | 1.12 | 2 | 131 |
