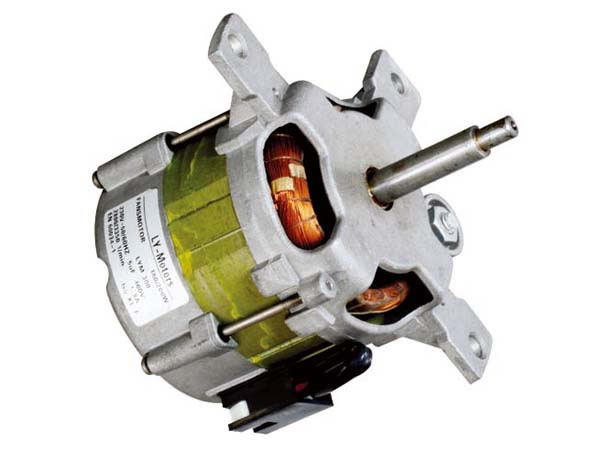

Motor Features
1. High-quality ball bearings are used to prolong the AC motor life.
2. Ventilation holes are machined in both the front and rear end bells to cool down the electric motor.
3. 3-foot mounting holders are integrated into the front end bell to ensure easy-installation and maintenance.
4. A small slot effectively ensures lower motor noise.
5. A thermal protector is used to guarantee working safety for both the AC electric device and user.
6. High-quality insulation materials are used to meet your temperature requirements.
7. Widely used as cooling fan motors as well as office automation facilities.
Applications
1. Fuel-burning equipment
2. Paper shredder
3. Blowers
4. Conveyors
| Voltage Range | 115 & 230 VAC |
| Power Output Range | 150-300 W |
| Speed Range | 2700-2950 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| YY95-1 | 230 | 0.25 | 2950 | 0.15 | 0.85 | 2750 | 50 | 95.5 |
| YY95-2 | 230 | 0.25 | 2950 | 0.15 | 0.85 | 2750 | 50 | 95.5 |
| YY95-3 | 230 | 0.5 | 2950 | 0.6 | 1.68 | 2750 | 180 | 110 |
| YY95-5 | 230 | 0.5 | 2950 | 0.7 | 1.78 | 2750 | 200 | 115 |
