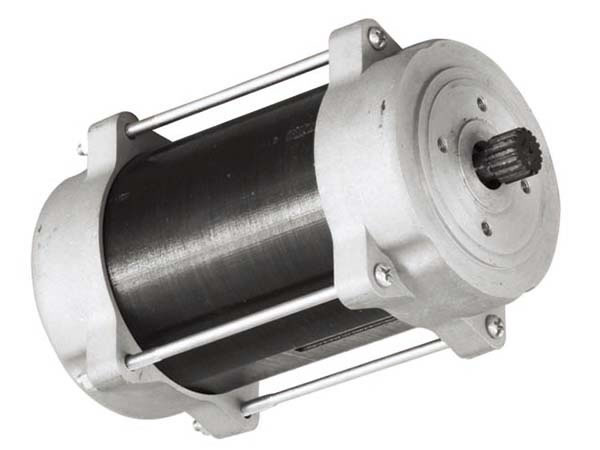

Motor Features
1. The AC motor features a stabilized output torque and fast starting torque.
2. Reliable electric motor construction with high running torque.
3. Low noise and less vibration.
4. A thermal protector is installed inside the motor to prevent overheating and failure.
5. Agear wheel is available along with other custom motor mounting options.
6. Widely applied to household appliances or light weight electrically powered machines.
Applications
1. Household applications
2. Cleaning machines
3. Small machinery
| Voltage Range | 115 & 230 VAC |
| Power Output Range | 150-300 W |
| Speed Range | 1300-1475 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |

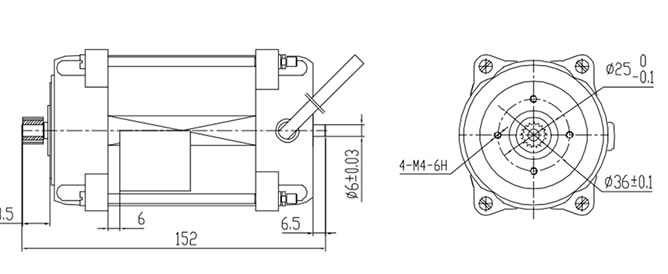

| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| YY73-1 | 230 | 0.08 | 1475 | 0.55 | 0.35 | 1400 | 80 | 152 |
| YY73-2 | 230 | 0.1 | 1475 | 0.55 | 0.31 | 1400 | 80 | 132 |
