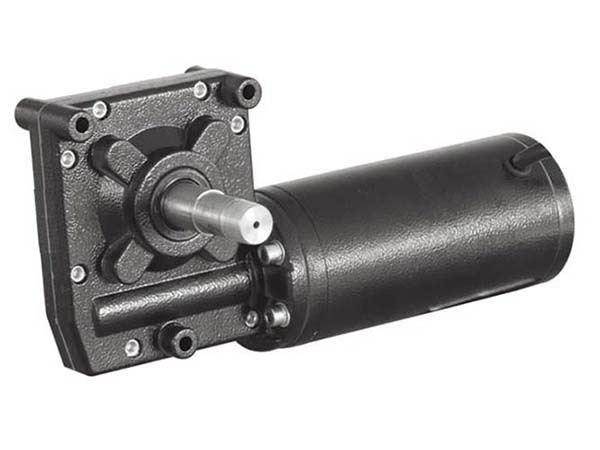

Motor Features
1. The DC geared motor's worm gear can be customized to achieve maximum output torque.
2. The electric motor's speed ranges offer more options to application engineers.
3. More options in both worm wheel material and motor body length are available.
4. The DC motor's has 12VDC/24VDC/36VDC/90VDC working voltage options.
5. Widely applied in pumping facilities and street sweepers.
Applications
1. Dump trucking tarp systems
2. Construction trucking tarp systems
3. Agriculture trucking tarp systems
4. Waste&recycling trucking tarp systems
5. Disable vehicles
| Gearbox Housing | Ruggedised die-cast Aluminium | |||
| Worm Gear Material | Bronze,steel or glass-filled plastic | |||
| Lubrication | Grease lubricated & sealed | |||
| Gearbox Output Bearing Type | High quality ball bearings | |||
| Insulation Class | F (contact us for class B) | |||
| Brush Type | Integral or removable | |||
| Ambient Operating Temperature | -20℃ to +40℃ | |||
| Motor Size | worm wheel material | Gear Ratio | Speed range | Output Shaft Type | ||||
| 73ZYT、75ZYT、90ZYT | Delrin、Bronze | 12.5:1 | 125-300 | Customized | ||||
| 73ZYT、75ZYT、90ZYT | Delrin、Bronze | 25:1 | 60-150 | Customized | ||||
| 73ZYT、75ZYT、90ZYT | Delrin、Bronze | 30:1 | 50-125 | Customized | ||||
| 73ZYT、75ZYT、90ZYT | Delrin、Bronze | 50:1 | 30-75 | Customized | ||||
