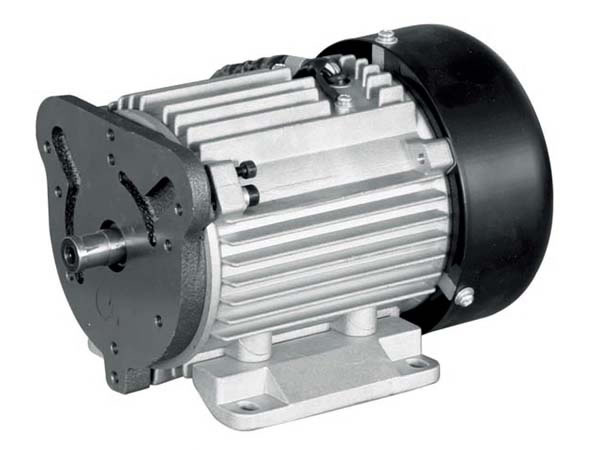

Motor Features
1. An extra mounting plate is installed at the side of the front end bell to ensure a perfect fit with your existing appliance.
2. A cooling fan is installed at the side of the AC motor's rear end bell to decrease temperature rise for a longer service life.
3. A black cover is installed around the cooling fan for working safety.
4. More ribs are especially added into the outside of the electric motor casing to cool down the device.
5. High temperature ball bearings greatly helps prolong the service life of themotor.
6. Widely applied to electric industrial machinery, embroidery machines and gardening equipment.
Applications
1. Packaging machines
2. Embroidery machines
3. Agricultural& gardening equipment
4. Industrial machinery
| Voltage Range | 115 & 230 VAC |
| Power Output Range | 150-300 W |
| Speed Range | 2700-3400 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| YY120-2 | 230 | 0.5 | 2920 | 0.57 | 1.3 | 2750 | 120 | 176.5 |
| YY120-3 | 115 | 0.7 | 3500 | 0.35 | 2.5 | 3350 | 120 | 176.5 |
