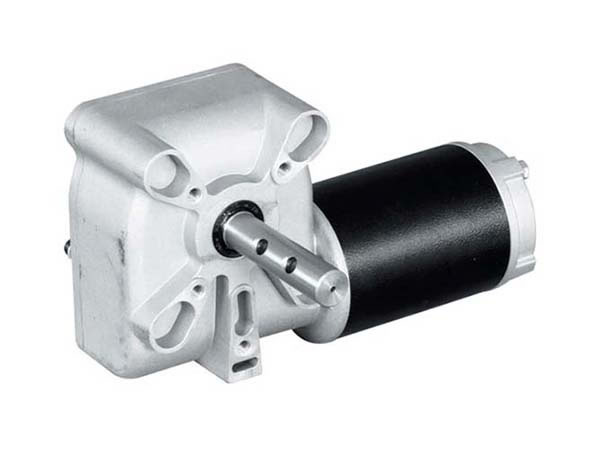

Motor Features
1. Electric motor diameter of 80mm runs at 12VDC.
2. Compact high performance motor design.
3. Bigger power and higher torque with a flexible motor body length.
4. The DC geared motor's extended shaft can be customized to fit your final application.
5. Widely applied in lifting machinery.
Applications
1. Automated tarp system in heavy duty trucking
2. Lifting machinery
3. Materials handling
4. Specialty vehicles
| Gearbox Housing | Ruggedised die-cast Aluminum | |||
| Worm Gear Material | Bronze,steel or glass-filled plastic | |||
| Lubrication | Grease lubricated & sealed | |||
| Gearbox Output Bearing Type | High quality ball bearings | |||
| Insulation Class | F (contact us for class B) | |||
| Brush Type | Integral or removable | |||
| Ambient Operating Temperature | -20℃ to +40℃ | |||
| Part Number | Voltage | Gear Ratio | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| VDC | / | RPM | Nm | A | RPM | W | mm | |
| ZJD8025A | 12 | 60:1 | 50 | 37 | 50 | 40 | 600 | 240.5 |
| ZJD8025B | 12 | 90:1 | 60 | 50 | 75 | 48 | 900 | 270.5 |
