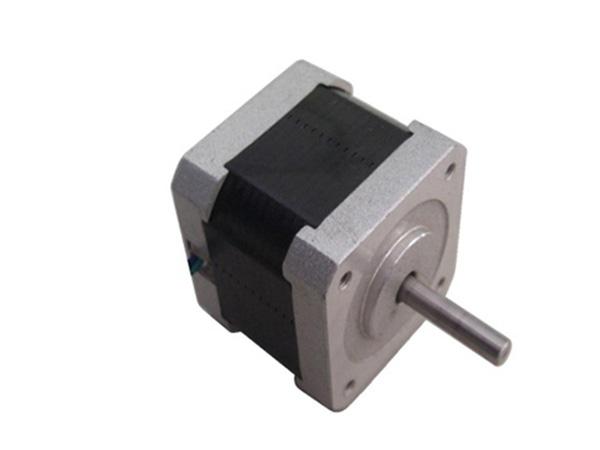

Motor Features
1. Frame size NEMA 17
2. Step angle 1.8°with +/-5% accuracy
3. High holding torque with flexible body length
4. Gearhead can be supplied upon request
5. Ambient temperature at -20℃ and 50℃ to prolong the motor life.
Applications
1. Copying machines
2. Plotters
3. Stage lighting
4. High-end office equipment
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 42BYGH201 | 12 | ≤0.16 | 1.8 | 75 | 42 | 950 | 5 | 200 | 34 |
| 42BYGH202 | 12 | ≤0.3 | 1.8 | 40 | 22 | 1250 | 6 | 200 | 34 |
| 42BYGH610 | 3.6 | ≤1.2 | 1.8 | 3 | 3.3 | 3000 | 6 | 220 | 54 |
| 42BYGH613 | 2.4 | ≤1.7 | 1.8 | 1.5 | 2.5 | 3500 | 4 | 220 | 54 |
| 42BYGH616 | 4.1 | ≤0.5 | 1.8 | 8 | 15 | 2600 | 4 | 220 | 54 |
| 42BYGH718 | 8.9 | ≤0.5 | 1.8 | 18 | 23 | 2900 | 6 | 250 | 50 |
| 42BYGH721 | 10 | ≤0.25 | 1.8 | 40 | 36 | 2000 | 6 | 250 | 50 |
| 42BYGH722A | 12 | ≤0.38 | 1.8 | 31.6 | 32 | 3200 | 6 | 250 | 50 |
| 42BYGH801 | 12 | ≤0.4 | 1.8 | 30 | 28 | 3800 | 6 | 280 | 68 |
| 42BYGH803 | 5.6 | ≤0.8 | 1.8 | 7 | 4 | 2600 | 6 | 280 | 68 |
