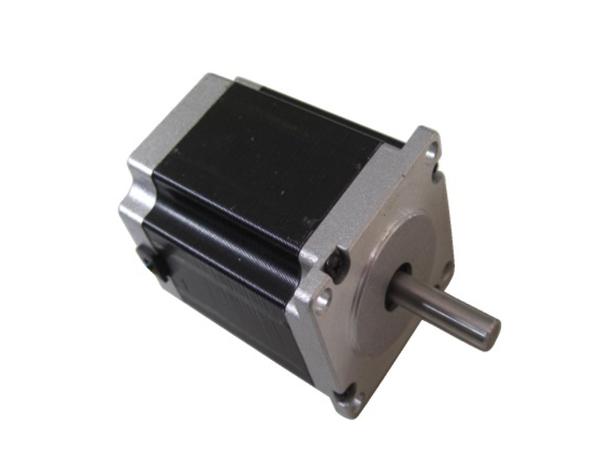

Motor Features
1. Especially designed at step angle 1.2°for micro-stepping
2. Frame size NEMA 23
3. Optimized performance with Max. holding torque 1.2N.m
4. Satisfied performance curve of Toque vs Speed
5. Ambient temperature of -20℃ to 50℃ to avoid any premature of motor life
Applications
1. Aerospace
2. Robotics
3. Machine tools
4. Printers/plotters
5. Fine positioning industrial and commercial applications
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 57BYGH350A-001 | 6.76 | ≤5.2 | 1.2 | 1.3 | 1.4 | 45000 | TBA | 300 | 110 |
| 57BYGH350B-001 | 3.92 | ≤5.6 | 1.2 | 0.7 | 1.7 | 90000 | TBA | 450 | 300 |
| 57BYGH350C-001 | 4.1 | ≤5.2 | 1.2 | 0.8 | 1.5 | 120000 | TBA | 480 | 480 |
