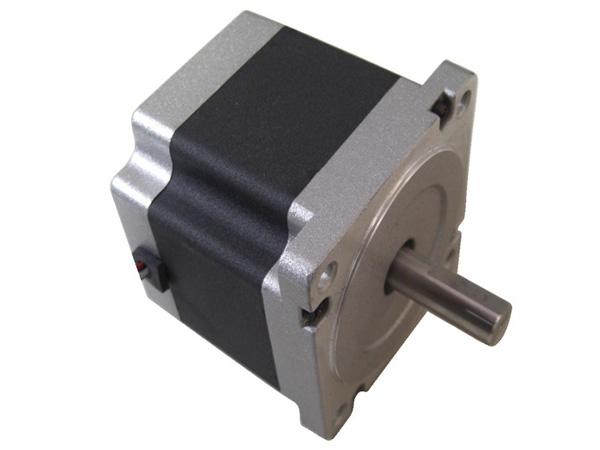

Motor Features
1. Frame size 85mm with square size front endbell
2. Step angle 1.8°with 4,6 or 8-lead of wiring connection
3. Hi-precision and skewed rotor and stator lamination stacks
4. Dedicated workmanship and full-range inspection
5. Optimized performance with more reliability
Applications
1. Adhesive dispensing equipment
2. Plastic dropping machines
3. Coil winding machines
4. Diamond grinding machines
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 85HS68-1404-XX | 5.6 | ≤1.4 | 1.8 | 4 | 24 | 2.8 | 4 | TBA | 1 |
| 85HS68-4004-XX | 2.4 | ≤4 | 1.8 | 0.6 | 2.8 | 2.8 | 4 | TBA | 1 |
| 85HS80-4208-001 | 4.6 | ≤2.97 | 1.8 | 1.55 | 6.76 | 3.2 | 8 | TBA | 1.4 |
| 85HS80-5504-001 | 2.2 | ≤5.5 | 1.8 | 0.4 | 3.5 | 4.5 | 4 | TBA | 1.4 |
| 85HS97-3008-001 | 4.8 | ≤3 | 1.8 | 1.6 | 8 | 5 | 8 | TBA | 1.8 |
| 85HS97-4006-001 | 3.4 | ≤4 | 1.8 | 0.85 | 5 | 4.4 | 6 | TBA | 1.8 |
| 85HS116-4208-001 | 5 | ≤4.2 | 1.8 | 1.2 | 6.5 | 6 | 8 | TBA | 2.7 |
| 85HS116-5004-001 | 5 | ≤5 | 1.8 | 1 | 11 | 8.5 | 4 | TBA | 2.7 |
| 85HS126-6404A-001 | 1.8 | ≤6.4 | 1.8 | 0.28 | 2.85 | 7 | 4 | TBA | 3 |
| 85HS126-4008-001 | 6 | ≤4 | 1.8 | 1.5 | 8 | 6.8 | 8 | TBA | 3 |
| 85HS131-7004-XX | 2.8 | ≤7 | 1.8 | 0.4 | 4 | 9 | 4 | TBA | 3.3 |
| 85HS131-3004-XX | 5.1 | ≤3 | 1.8 | 1.7 | 18 | 9 | 4 | TBA | 3.3 |
| 85HS155-5004-001 | 4 | ≤5 | 1.8 | 0.8 | 10 | 11 | 4 | TBA | 3.6 |
| 85HS155-6504-001 | 3.9 | ≤6.5 | 1.8 | 0.6 | 7 | 11 | 4 | TBA | 3.6 |
