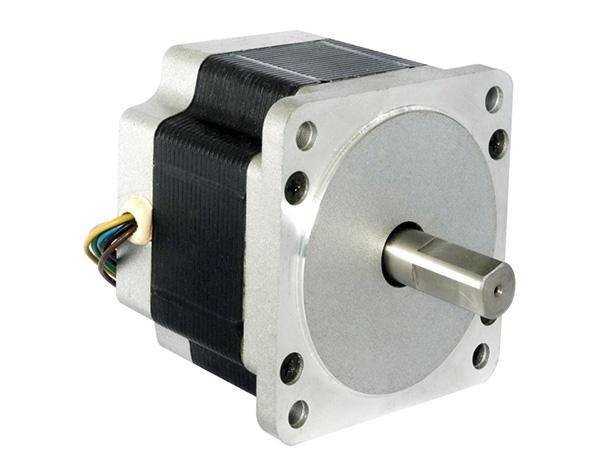

Motor Features
1. Frame size 85mm with step angle 1.8°
2. 2-phase or 4-phase winding configuration
3. Constructed with NMB ball bearings
4. Improved reliability with optimized holding torque
5. Flexible motor body length
6. Hi-pot 500V AC 1 minute
Applications
1. Flame/plasma cutting machines
2. Laser cutting machines
3. Industrial robots
4. CNC metal processing machinery
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 85BYGH450A-001 | 4.4 | ≤2 | 1.8 | 2.2 | 10 | 2.8 | 8 | TBA | 1.4 |
| 85BYGH450A-002 | 3 | ≤3 | 1.8 | 1 | 4.4 | 3.5 | 8 | TBA | 1.4 |
| 85BYGH450B-001 | 6.4 | ≤2 | 1.8 | 3.2 | 12 | 4 | 8 | TBA | 2.7 |
| 85BYGH450B-004 | 1.9 | ≤3.5 | 1.8 | 0.53 | 6.5 | 6.5 | 4 | TBA | 2.7 |
| 85BYGH450B-008 | 2.6 | ≤6 | 1.8 | 0.43 | 2.5 | 6.8 | 8 | TBA | 2.7 |
| 85BYGH450C-001 | 7.8 | ≤2 | 1.8 | 3.9 | 20 | 7.6 | 8 | TBA | 3.6 |
| 85BYGH450C-012 | 5.7 | ≤3 | 1.8 | 1.9 | 22 | 10.5 | 4 | TBA | 3.6 |
| 85BYGH450D-002 | 3.2 | ≤4 | 1.8 | 0.8 | 3.5 | 5.5 | 8 | TBA | 1.7 |
| 85BYGH450D-007 | 6.4 | ≤2 | 1.8 | 3.2 | 15 | 4.4 | 8 | TBA | 1.7 |
| 85BYGH350A-001 | 4 | ≤4 | 1.2 | 1 | 4 | 2.3 | TBA | TBA | 1.1 |
| 85BYGH350A-002 | 7.4 | ≤1.75 | 1.2 | 4.25 | 12.3 | 2.3 | TBA | TBA | 1.1 |
| 85BYGH350B-001 | 4.6 | ≤5.8 | 1.2 | 0.8 | 3 | 4.5 | TBA | TBA | 2.32 |
| 85BYGH350B-002 | 10.8 | ≤2 | 1.2 | 5.4 | 23 | 4.5 | TBA | TBA | 2.32 |
| 85BYGH350C-001 | 13 | ≤5.2 | 1.2 | 2.5 | 13.5 | 6.8 | TBA | TBA | 3.3 |
