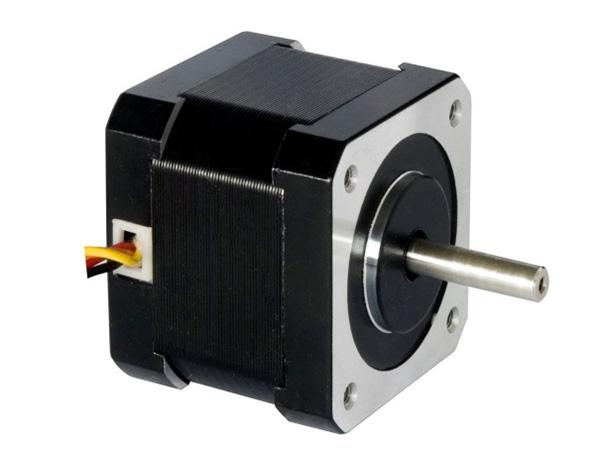

Motor Features
1. Frame size NEMA 17 with step angle 0.9°
2. Quality rotor and stator lamination stacks
3. Dynamically balanced armature
4. Fine machine-turned endbells
5. Dedicated workmanship and full range inspection
Applications
1. Engraving machines
2. Stage lighting
3. Medical instruments
4. Textile machinery
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 42BYGHM201 | 5 | ≤0.4 | 0.9 | 12.5 | 21 | 1600 | 4 | 180 | 34 |
| 42BYGHM206 | 3.6 | ≤1.0 | 0.9 | 3.6 | 3.3 | 1400 | 6 | 180 | 34 |
| 42BYGHM208 | 2.5 | ≤1.2 | 0.9 | 2.1 | 5 | 2100 | 4 | 180 | 34 |
| 42BYGHM602 | 11.2 | ≤0.4 | 0.9 | 28 | 30 | 2600 | 6 | 220 | 54 |
| 42BYGHM604 | 3.6 | ≤1.2 | 0.9 | 3 | 3.5 | 2600 | 6 | 220 | 54 |
| 42BYGHM607 | 2.6 | ≤1.7 | 0.9 | 1.5 | 3.2 | 3200 | 4 | 220 | 54 |
| 42BYGHM805 | 3.5 | ≤1 | 0.9 | 3.5 | 7.6 | 3700 | 4 | 260 | 68 |
| 42BYGHM809 | 2.7 | ≤1.68 | 0.9 | 1.6 | 3.5 | 4200 | 4 | 260 | 68 |
| 42BYGHM810 | 2.4 | ≤2.4 | 0.9 | 1 | 1.8 | 4800 | 4 | 260 | 68 |
