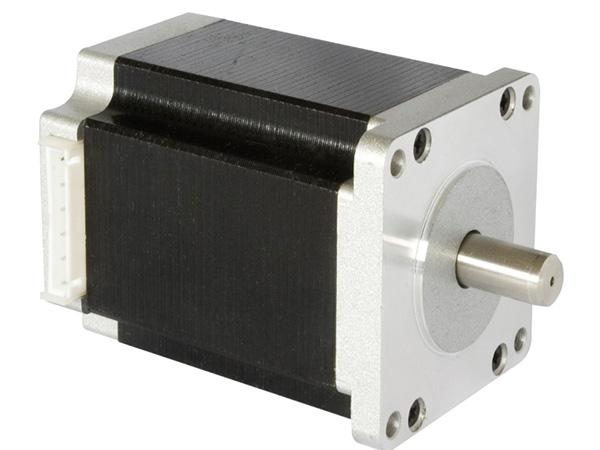

Motor Features
1. Frame size 60mm to fit some specific applications
2. Simple and rugged construction with JST female connector
3. Step angle 1.8°with +/-5% step accuracy
4. Various holding torque Max. to reach 2.3N.m
5. Low rotor inertia with high EMC performance
Applications
1. Electric power supply
2. Mining and petroleum
3. Metallurgical
4. Some other fine-positioning areas
| Model | Phase Voltage (V) | Phase Current (A) | Step Angel (°) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (g.cm) | No. of Leadwire | Detent Torque (g.cm) | Rotor Inertia (g.cm2) |
| 60BYGH402A-XX | 2.4 | ≤3 | 1.8 | 0.8 | 1.6 | 10000 | 6 | 600 | 300 |
| 60BYGH403A-XX | 3.9 | ≤3 | 1.8 | 1.3 | 4.3 | 14000 | 4 | 600 | 300 |
| 60BYGH408A-XX | 4 | ≤2 | 1.8 | 2 | 3.5 | 12000 | 6 | 600 | 300 |
| 60BYGH801A | 5.6 | ≤2 | 1.8 | 2.8 | 6 | 18000 | 6 | 1100 | 840 |
| 60BYGH805A | 2.8 | ≤4 | 1.8 | 0.7 | 3.5 | 23000 | 4 | 1100 | 840 |
| 60BYGH806A | 4.2 | ≤3 | 1.8 | 1.4 | 4.3 | 20000 | 6 | 1100 | 840 |
