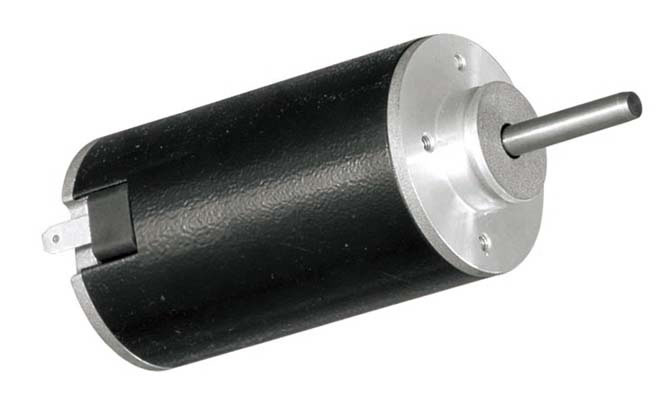

Motor Features
1. Steel pipe is cut to form the PDMC motor housing to ensure high-efficiency production.
2. Closed-type motor construction to ensure an anti-sparking.
3. High-quality and precision ball bearings are used to decrease motor noise and vibration.
4. An extended motor shaft with a key slot as well as a screw way is available.
5. Front end bell can be customized to fit your specific applications.
6. Widely applied for use in fans, door openers as well as pumps.
Applications
1. Household appliances
2. Power tools
3. Fitness equipment
4. Small machinery
| Voltage Range | 12 & 24 VDC (240VDC also available) |
| Power Output Range | 5-30 W |
| Speed Range | 1000-6000 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Housing Type | Enclosed (ventilated also available) |

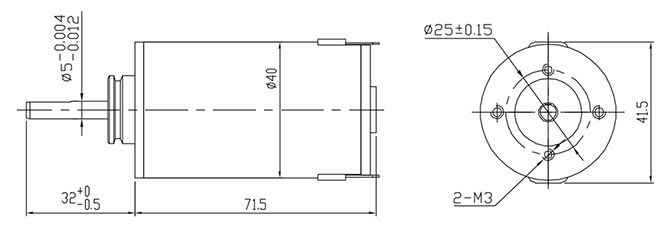

| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| 40ZYT017 | 24 | 0.3 | 4200 | 0.045 | 1.5 | 3400 | 16 | 71.5 |
| 40ZYT027 | 24 | 0.1 | 1800 | 0.045 | 0.6 | 1200 | 6 | 71.5 |
| 40ZYT028 | 24 | 0.1 | 2800 | 0.045 | 0.9 | 2266 | 11 | 71.5 |
| 40ZYT029 | 24 | 0.5 | 6500 | 0.03 | 1.7 | 5500 | 17 | 71.5 |
