Motor Features

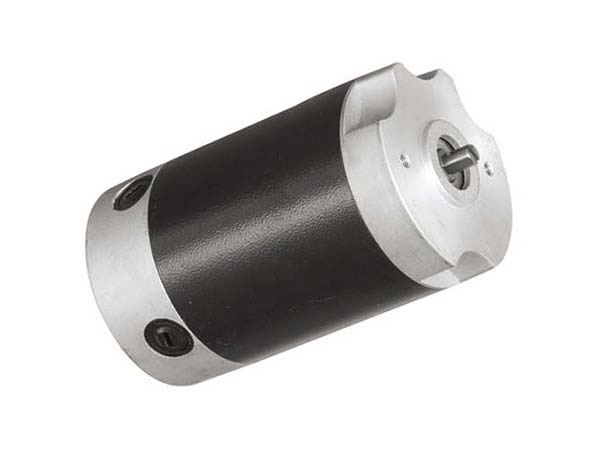

1. The 110mm PMDC brushed motor has working voltage options that include 12V DC, 24V DC and 36V DC.

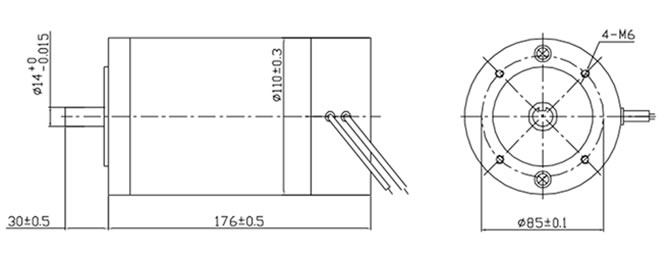

2. The motor housing diameter is 4.33" with a flexible motor body.
3. The electric motor has a shaft diameter at 0.55".
4. Optional features include an extended shaft, end bells and outleads are available for your OEM applications.
5. We perform routine in-line inspections to discard any defected motor components to maintain our consistent quality.
6. Our brushed motors are installed in some battery-powered facilities like door openers, wheelchairs, lifting machines, etc.
Applications
1. Material handling systems
2. Scooters
3. Floor sweeper
4. Turntables
5. Small machinery
| Voltage Range | 12 & 24 VDC (240VDC also available) |
| Power Output Range | 150-700 W |
| Speed Range | 1000-6000 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Housing Type | Enclosed (ventilated also available） |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| 110ZYT001 | 12 | 5 | 1500 | 2.2 | 30 | 1350 | 210 | 200 |
| 110ZYT005 | 24 | 3 | 1500 | 2.2 | 15 | 1350 | 210 | 200 |
| 110ZYT006 | 24 | 5 | 3400 | 2.2 | 38 | 2800 | 650 | 200 |
| 110ZYT007 | 36 | 3.5 | 3400 | 2.2 | 27 | 2800 | 650 | 200 |
