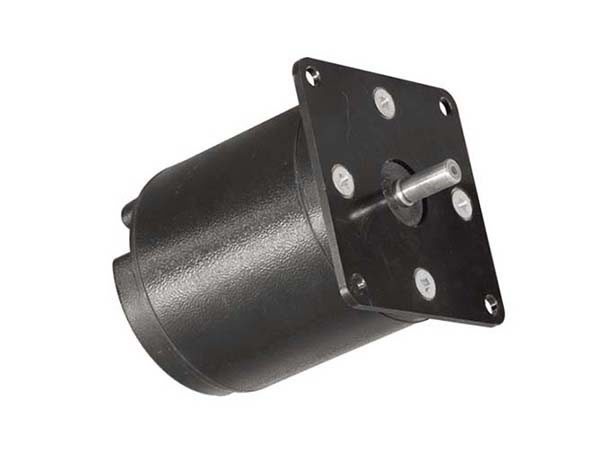

Motor Features

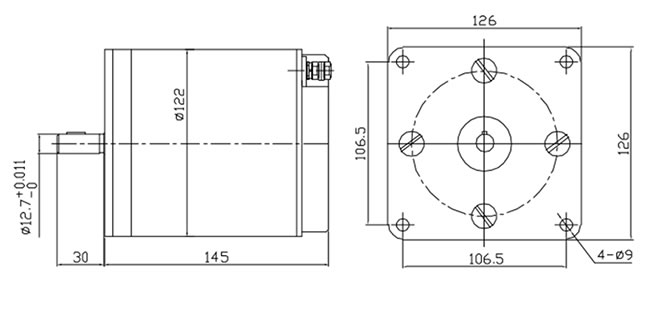

1. A large mounting front end bell is installed to ensure proper assembly at both ends.
2. Both the motor housing and end bells are powder-coated for rust protection in order to endure outdoor application.
3. A closed-type construction helps to protect our brushed motor from dust and humidity to survive poor working conditions.
4. Quality ferrite permanent magnets, copper-windings, commutators and brushes have been carefully installed to maintain our quality standards.
5. This brushed motor is UL and EMC certified.
6. Our PM brushed motors are widely applied to pick-up machines, metal recycling machines, electric vehicles, etc.
Applications
1. Pick-up machines
2. Cleaning equipment
3. Snow plough
4. Salt spreader
5. Some other specialty vehicles
| Voltage Range | 12 & 24 VDC (240VDC also available) |
| Power Output Range | 100-750 W |
| Speed Range | 700-6000 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Housing Type | Enclosed (ventilated also available） |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| 120ZYT001 | 36 | 3.9 | 3530 | 1.1 | 14.4 | 3390 | 390 | 200 |
| 120ZYT002 | 12 | 2 | 850 | 1.2 | 12 | 780 | 98 | 145 |
| 120ZYT004 | 24 | 1.6 | 1750 | 3 | 24.2 | 1510 | 474 | 200 |
| 120ZYT005 | 24 | 1.6 | 1750 | 3 | 24.2 | 1510 | 474 | 200 |
