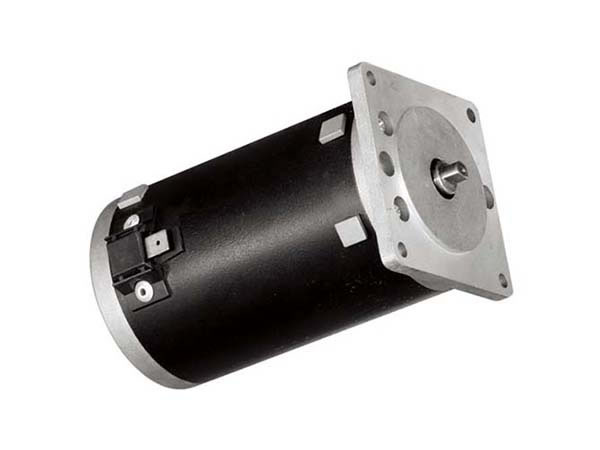

Motor Features
1. The motor housing undergoes a black powder-coating for anti-rust performance.
2. Die cast aluminum end bells are ready for further machining if necessary to achieve a light motor weight.
3. High-quality ferrite permanent magnets are utilized to achieve smooth electric motor performance.
4. Our dedicated manufacturing staff and production management work to ensure low noise and less vibration during operation.
5. Commonly applied to powered chairs, X-ray machines and door openers.
Applications
1. Agricultural machinery
2. Powered chairs
3. Small machinery
4. special batteries-powered vehicles
5. Industrial control systems
| Voltage Range | 12 & 24 VDC (240VDC also available) |
| Power Output Range | 100-190 W |
| Speed Range | 1000-6000 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Housing Type | Enclosed (ventilated also available） |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| 73ZYT001 | 12 | 3 | 4400 | 0.3 | 15 | 3700 | 116 | 145 |
| 73ZYT002 | 12 | 2.5 | 4000 | 0.4 | 16.5 | 3200 | 134 | 155 |
| 73ZYT003 | 12 | 2 | 3600 | 0.5 | 18 | 3000 | 157 | 165 |
| 73ZYT005 | 24 | 2 | 3600 | 0.5 | 10 | 3000 | 157 | 165 |
