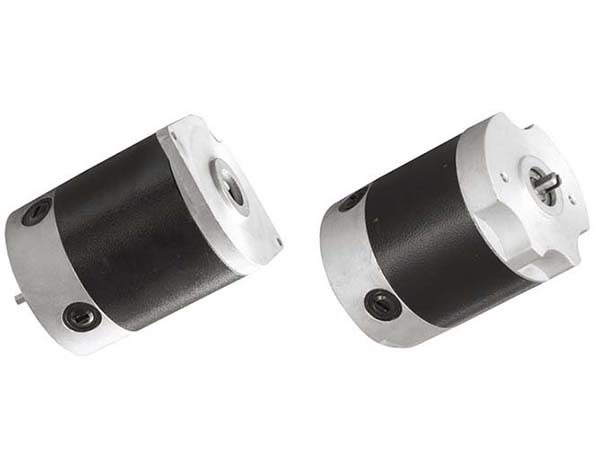

Motor Features
1. Optimized design with quality windings to prevent any over-loading.
2. Quality ferrite permanent magnets are adopted to give our electric motor higher torque at a lower speed.
3. Cartridge brush assemblies can be replaced to avoid premature failure in motor performance.
4. Optional solutions such as the extended shafts and front end bell mountings can be professionally evaluated upon request.
5. UL and EMC certified.
6. Our PMDC brushed motor is popular among application engineers, who develop wheelchairs, golf carts and conveyors.
Applications
1. Wheel chairs
2. Golf carts
3. Lifting machines
4. Automated covering systems
General Specification
| Voltage Range |
12 & 24 VDC (240VDC also available) |
| Power Output Range |
150-500 W |
| Speed Range |
1000-6000 RPM |
| Operational Temperature |
–20℃～+40℃ |
| Insulation Class |
F (contact us for class B) |
| Housing Type |
Enclosed (ventilated also available） |
Spec for 100mm brushed DC motors
| Part Number |
Voltage |
No load Current |
No load Speed |
Torque |
Rated Current |
Rated Speed |
Rated Power |
Length |
| Units |
V |
A |
RPM |
Nm |
A |
RPM |
W |
mm |
| 100ZYT001 |
24 |
3.5 |
3921 |
0.8 |
15.6 |
3454 |
289 |
165 |
| 100ZYT003 |
36 |
1 |
2380 |
0.8 |
7.5 |
2150 |
180 |
165 |
| 100ZYT009 |
24 |
1.5 |
2510 |
0.8 |
11 |
2150 |
180 |
127 |
| 100ZYT029 |
24 |
1.5 |
3500 |
0.8 |
15 |
3000 |
250 |
127 |

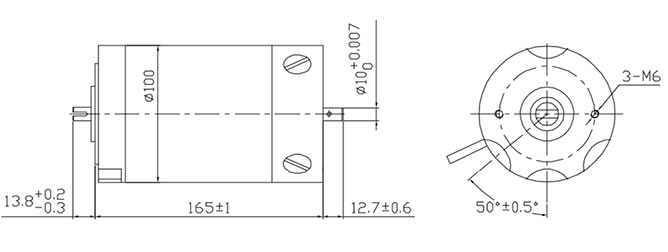

Motor outline
