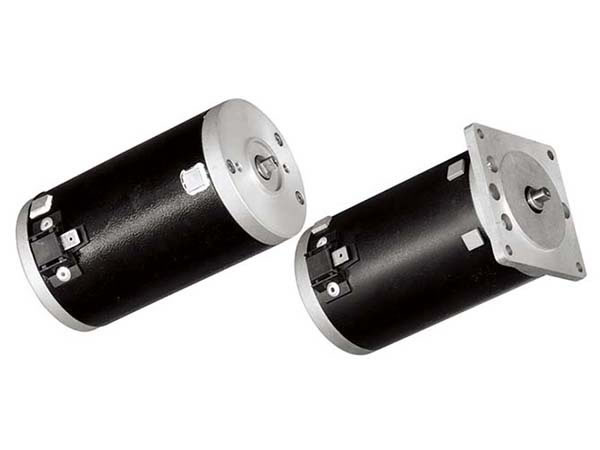

Motor Features
1. High quality replaceable carbon brushes are the primary feature of this electric motor.
2. With cartridge brush assemblies located at the rear end of the motor body, the end-user can replace the brushes for easy-maintenance if necessary.
3. A low working voltage at 12VDC is highly valued by engineers as one a critical working safety considerations.
4. Despite its compact design, the motor produces a load torque as high as 1.2N.m
5. An optional gearbox is offered to achieve a larger output torque.
6. Our permanent magnet DC motors are widely applied to welding machines, pumping equipment as well as X-ray and tomographic systems.
Applications
1. Conveyors
2. Cleaning equipment
3. X-ray and tomographic systems
4. Tarpaulin systems for dumps
| Voltage Range | 12 & 24 VDC (240VDC also available) |
| Power Output Range | 150-450 W |
| Speed Range | 1000-6000 RPM |
| Operational Temperature | –20℃～+40℃ |
| Insulation Class | F (contact us for class B) |
| Housing Type | Enclosed (ventilated also available） |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| Units | V | A | RPM | Nm | A | RPM | W | mm |
| 90ZYT001 | 24 | 3 | 5300 | 0.8 | 23 | 4700 | 394 | 154.5 |
| 90ZYT005 | 12 | 2.2 | 4889 | 0.6 | 29.3 | 4091 | 257 | 154.5 |
| 94ZYT002 | 24 | 2.2 | 4889 | 0.6 | 29.3 | 4091 | 257 | 154.5 |
| 94ZYT006 | 24 | 3.2 | 4889 | 0.6 | 29.3 | 4091 | 257 | 154.5 |
