92mm Windshield Wiper Motor

DC Geared Motor, ZDM1930

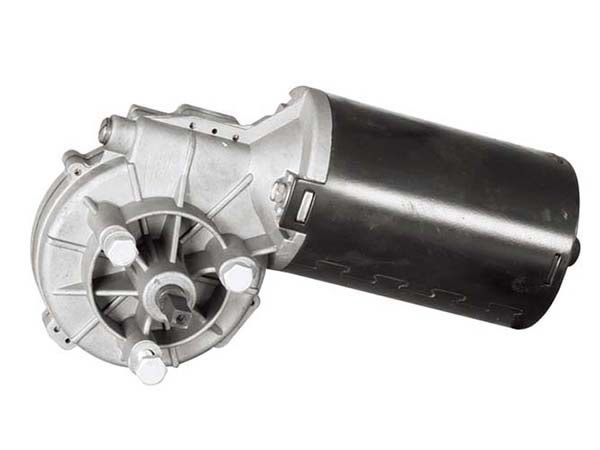

 92mm Windshield Wiper Motor

Motor Features
1. Our wiper motors have reliable motor performance thanks to their gear transmission efficiency.
2. These DC geared motors have gearheads that are carefully lubricated ensure the wiper are operating properly.
3. Permanent magnets are installed inside the wiper motors to prolong the life.
4. The enclosed design of the electric motor extreme weather conditions.
5. It is typically applied to the wipers of heavy vehicles, just to list a few.

Applications
1. Wipers of heavy duty vehicles, cars and SUV
2. Photographic/optical equipment
3. Business machines
4. Medical appliances

General Specification
Gearbox Housing Ruggedized die-cast Aluminum
Worm Gear Material Bronze, steel or glass-filled plastic
Lubrication Grease lubricated & sealed
Gearbox Output Bearing Type High quality ball bearings
Insulation Class F (contact us for class B)
Brush Type Integral or removable
Ambient Operating Temperature -20℃ to +40℃
Spec for 92mm Windshield Wiper Motor
Part Number Voltage No load Current No load Speed Torque Rated Current Rated Speed Rated Power Length
VDC A RPM Nm A RPM W mm
ZDM1930-H 12 5.5 47 37 30 37 150 275
ZDM1930-L 12 4.5 33 50 20 28 150 275

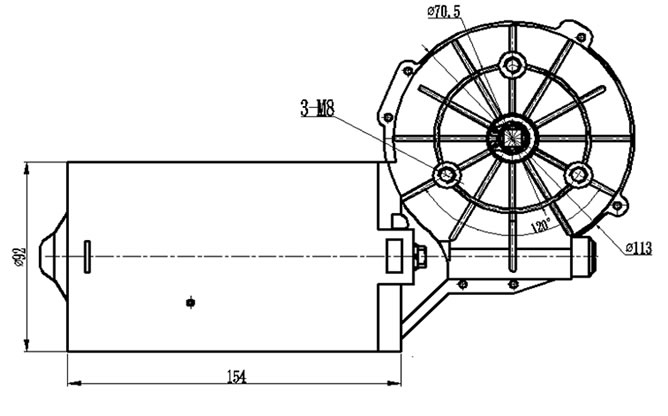

Motor outline
