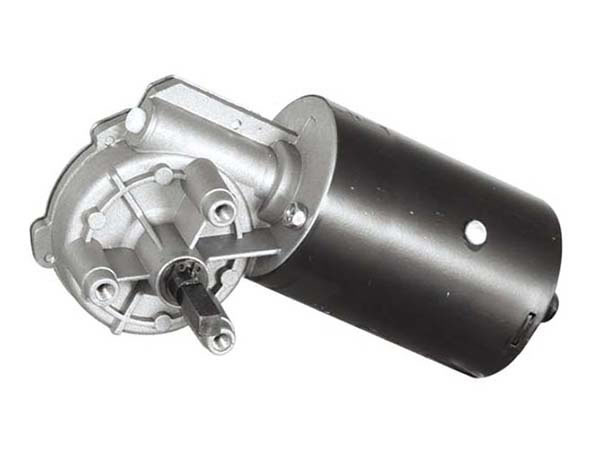

Motor Features
1. The DC geared motor's motor components like the armature shafts, commutators, worm wheels and etc. are carefully machined for maximum precision.
2. Both the electric motor itself and the gearhead are well sealed for rainproof.
3. The housing of the complete geared motor undergoes a heat treatment to ensure a longer service life.
4. An extended shaft and wires/connectors/terminals can be customized upon request.
5. It is typically applied to the wipers for engineering vehicles.
Applications
1. Wipers of engineering trucks, cars and SUV
2. Pumps
3. Robotics
4. Automatic machines
| Gearbox Housing | Ruggedized die-cast Aluminum |
| Worm Gear Material | Bronze, steel or glass-filled plastic |
| Lubrication | Grease lubricated & sealed |
| Gearbox Output Bearing Type | High quality ball bearings |
| Insulation Class | F (contact us for class B) |
| Brush Type | Integral or removable |
| Ambient Operating Temperature | -20℃ to +40℃ |

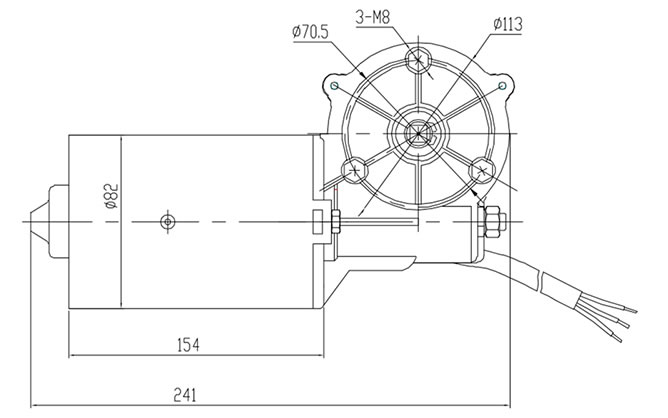

| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| VDC | A | RPM | Nm | A | RPM | W | mm | |
| ZDM1920-H | 12 | 2.25 | 50 | 25 | 20 | 45 | 100 | 241 |
| ZDM1920-L | 12 | 2.75 | 40 | 32 | 13.5 | 35 | 100 | 241 |
