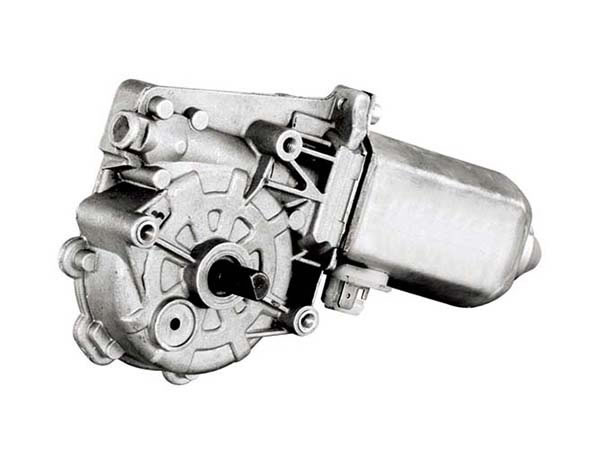

Motor Features
1. The construction of our worm gearbox for the DC geared motor is specifically developed for motorized windows.
2. Left-hand and right-hand window lifts will be matched with the exact proper geared motor.
3. The worm gearbox can also be customized to fit your final applications.
4. The electric motor body features a compact design to leave room for other installations in the final application.
5. Widely applied to the window lifts in cars as well as some other lifting applications.
Applications
1. Window lifts in cars
2. Automated door openers
3. Some other lifting facilities
| Gearbox Housing | Ruggedized die-cast Aluminum |
| Worm Gear Material | Bronze, steel or glass-filled plastic |
| Lubrication | Grease lubricated & sealed |
| Gearbox Output Bearing Type | High quality ball bearings |
| Insulation Class | F (contact us for class B) |
| Brush Type | Integral or removable |
| Ambient Operating Temperature | -20℃ to +40℃ |
| Part Number | Voltage | No load Current | No load Speed | Torque | Rated Current | Rated Speed | Rated Power | Length |
| VDC | A | RPM | Nm | A | RPM | W | mm | |
| ZDM1360-R | 12 | 2 | 60 | 5 | 8 | 35 | 35 | 175 |
| ZDM1360-L | 12 | 2 | 60 | 5 | 8 | 35 | 35 | 175 |
