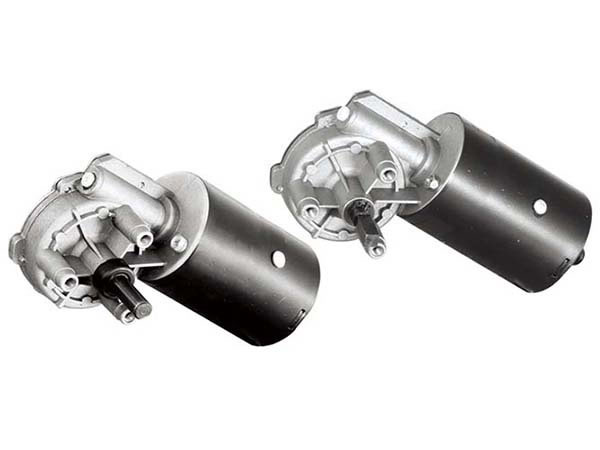

62mm Worm Gear Motor

DC Geared Motor, ZDM1531

 62mm Worm Gear Motor

Motor Features
1. Quality carbon brushes are equipped prolong the life of the DC geared motor.
2. Quality rare-earth magnets are installed to maximize electric motor performance.
3. Both EMC and thermal protections are available to meet your end-application requirements.
4. The layout and extended shaft can be customized to fit your needs.
5. These small DC motors are often applied to rain wipers in small cars and door openers.

Applications
1. Rain wipers
2. Door openers
3. Turntables
4. Conveyors

General Specification
Gearbox Housing Ruggedized die-cast Aluminum
Worm Gear Material Bronze, steel or glass-filled plastic
Lubrication Grease lubricated & sealed
Gearbox Output Bearing Type High quality ball bearings
Insulation Class F (contact us for class B)
Brush Type Integral or removable
Ambient Operating Temperature -20℃ to +40℃
Spec for 62mm Worm Gear Motor
Part Number Voltage No load Current No load Speed Torque Rated Current Rated Speed Rated Power Length
VDC A RPM Nm A RPM W mm
ZDM1531A 12 1.5 40 5.8 8 35 40 175
ZDM1531B 12 0.8 300 0.6 3 220 40 175
Motor outline
