Features
1. The gearbox housing is constructed from Aluminum, because of its corrosion resistance as well as to decrease the weight of the DC geared motor.
2. With low speed and high torque operation, our geared motor is reliable and easy to repair if necessary.
3. The brush assemblies at the rear end bell can be replaced as needed to extend service life.
4. Low noise and low vibration.
5. The electric motor can be fitted with a custom extended shaft.
6. It is typically applied to agriculture machines or openers for feeding machines.
General Specification
| Gearbox Housing |
Ruggedized die-cast Aluminum |
| Worm Gear Material |
Bronze, steel or glass-filled plastic |
| Lubrication |
Grease lubricated & sealed |
| Gearbox Output Bearing Type |
High quality ball bearings |
| Insulation Class |
F (contact us for class B) |
| Brush Type |
Integral or removable |
| Ambient Operating Temperature |
-20℃ to +40℃ |
Spec for Worm Gear Motor ZDM1950:
| Part Number |
Voltage |
No load Current |
No load Speed |
Torque |
Rated Current |
Rated Speed |
Rated Power |
Length |
| |
VDC |
A |
RPM |
Nm |
A |
RPM |
W |
mm |
| ZDM1950-1 |
12 |
10 |
25 |
45 |
35 |
20 |
180 |
297 |
| ZDM1950-2 |
24 |
7.5 |
35 |
35 |
25 |
30 |
200 |
297 |

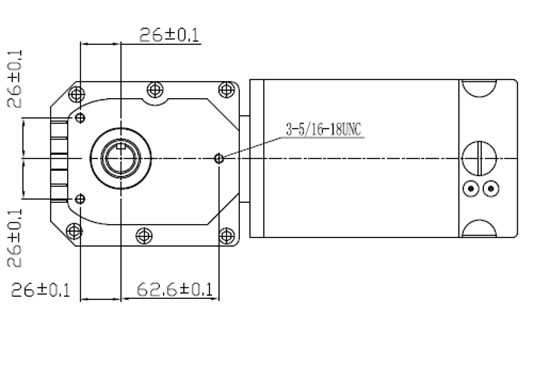

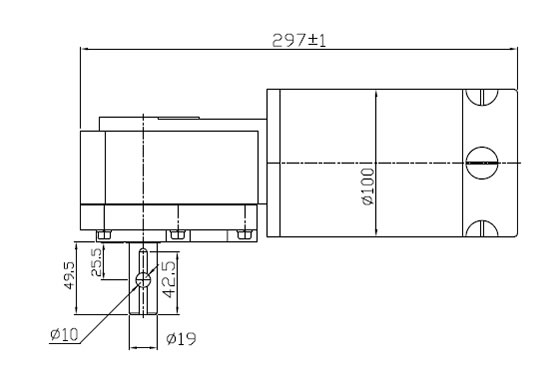

The drawing of motor outline
