Features
1. More options in nominal working voltage are available for different requirements in applications.
2. Working at as high as 230VDC but with as low as 4.2 Amps, will be extremely liked by some of end-application engineers.
3. Sufficient ventilation holes are intentionally kept in the motor housing to cool down the complete geared motor.
4. A routine and trial run will be given to each geared motor to remove any motors with extra noise/vibrations before delivery.
5. It is typically applied to large-scale street sweepers or some other battery-powered machines.
General Specification
| Gearbox Housing |
Ruggedized die-cast Aluminum |
| Worm Gear Material |
Bronze, steel or glass-filled plastic |
| Lubrication |
Grease lubricated & sealed |
| Gearbox Output Bearing Type |
High quality ball bearings |
| Insulation Class |
F (contact us for class B) |
| Brush Type |
Integral or removable |
| Ambient Operating Temperature |
-20℃ to +40℃ |
Spec for Worm Gear Motor ZDM1560
| Part Number |
Voltage |
Torque |
Rated Current |
Rated Speed |
Rated Power |
Length |
| |
VDC |
Nm |
A |
RPM |
W |
mm |
| ZDM1560A |
24 |
31 |
40 |
270 |
600 |
210.5 |
| ZDM1560B |
230 |
31 |
4.2 |
270 |
600 |
210.5 |
| ZDM1560C |
115 |
21 |
7.6 |
270 |
600 |
210.5 |

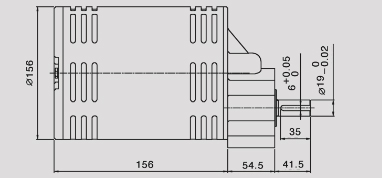

The drawing of motor outline
